Brushed Axial Fan 24V, 305MM, Suction

Model No.】:AX24B004-S305X-1SP-02    【Part No.】:01.24.13B    e-Catalog

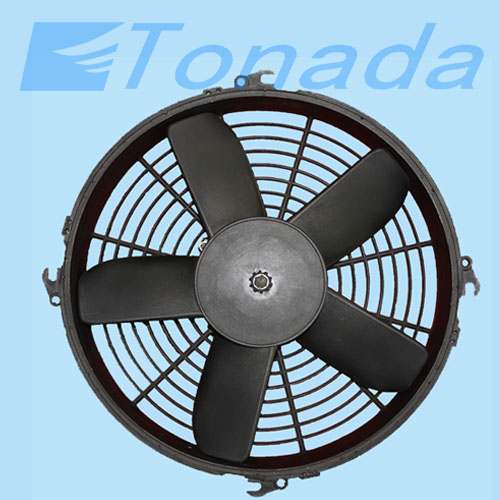

Product Photos】: Click to zoom in
Product Introduction】:

Tonada DC axial fan with brush:

Tonada Model: AX24B004-S305X-1SP-02

P/N: 01.24.13B

Max. Airflow 2580 m3/h, Current Input 8.2A

Suction, 1 Speed

Environmental Temperature: -40 ℃ ~ +85 ℃

Working Voltage: 24VDC

Quality: 2.7Kg

Noise: 75db(A)


The fan is the axial flow type, it has the characteristics of compact structure, working reliability, high efficiency, long working life etc.
