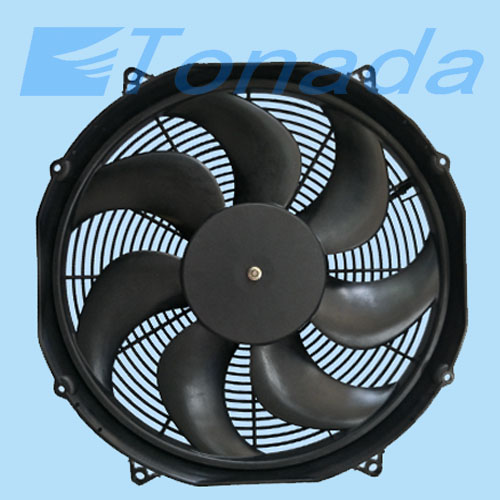

Brushless Axial Fan 24V, 385mm, Suction

Model No.】:AX24BL004C-S385W-1SP-02    【Part No.】:01.24.86    e-Catalog
Product Photos】: Click to zoom in
Product Introduction】:

DC24V, Max.Airflow 3150 m3/h, Current Input 10.0A;

Suction, 1 Speed

Tonada Model: AX24BL004C-S385W-1SP-02 (Suction, 1 Speed)

P/N: 01.24.86

Variable Speed is available

Tonada EC axial fans allow higher speed and tolerate backpressure better than AC motor and it can carry out intellectual regulation during operation through the pulse-width modulated signal open-loop control. DC motor is especially suitable for air flowing, ventilation, air conditioning, refrigeration and automobile industry etc.

We adopted the advanced aerodynamics philosophy for fans, which are highly efficient and generate less noise. Fans with curved or straight blades are available; DC brushless condenser fans with single-speed version, double-speed version or variable-speed version, and the intelligent electronic controllers with internal (integrated with motor) or external version are available.

FEATURE:

No Carbon Brush; Low Power Consumption; Super Long Service Life; Maintenance-free; Environment-friendly; Short Circuit Protection; Over-current Protection; Over-temperature Protection; Over-voltage Protection; Under-voltage Protection; Locked-rotor protection.
